4.0 Mini Air Pump for Mattress Mat

Color Orange

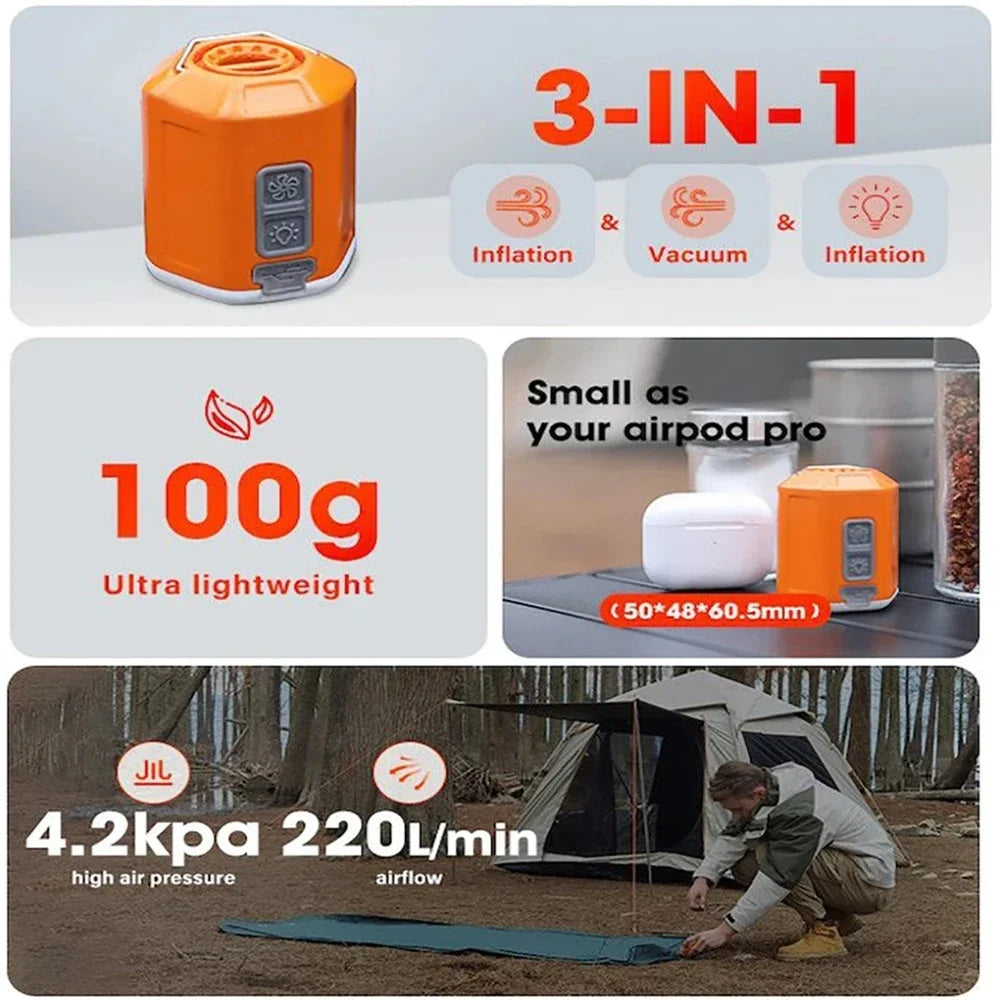

Host size (mm) 50 * 48 * 60.5mm

Host material ABS

Net weight of main engine (g) 100 (g)

Overall gross weight (including color box, accessories, g) Estimated: 180 (g)

Color box size (length * width * height) mm Estimated: 66 * 66 * 135mm

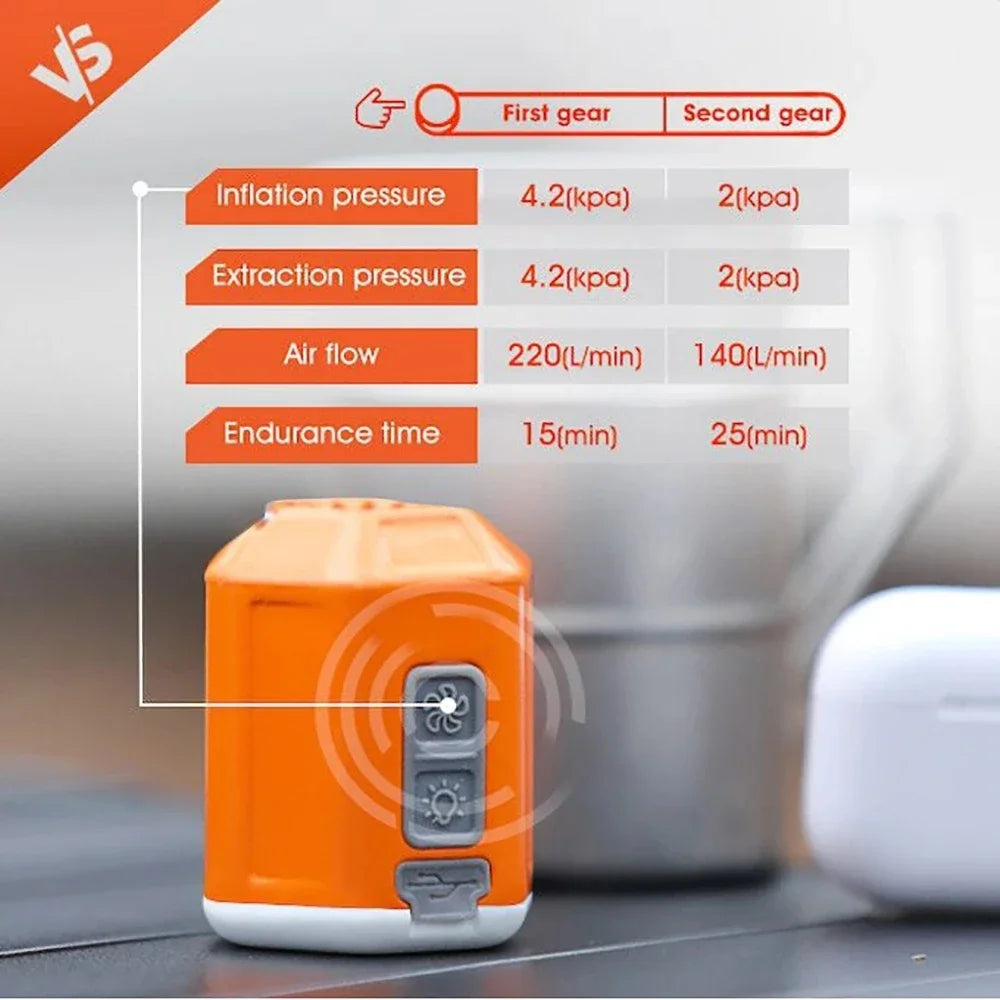

Second gear pumping pressure (kpa) 2.5 (kpa)

Second gear extraction pressure (kpa) 2.5 (kpa)

Second gear endurance (min) 25min

Second gear flow (L/min) 140 (L/min)

First gear light endurance (h) 2.5 (h)

First gear light lumen (LM) 400 (LM)

Second gear light endurance (h) 10 (h)

Second gear light lumen (LM) 200 (LM)

Third gear light endurance (h) 20 (h)

Third gear light lumen (LM) 40 (LM)

Waterproof grade IPX4

Charging time (h) 2.5 (h)

Operating noise (db) ＞ 90

Operating temperature, humidity range (℃/%) - 10~65 ℃/60%

Battery type Polymer battery * 2

Battery capacity (mAh) 1360mAh

Output voltage 3.7V

Charging voltage 5V/1A

Air pump gear number 2

Number of light stops 3

The charging indicator light "The battery level is lower than 10%, and the red light is always on,

The red light is always on when charging, and the green light is on when fully charged"

SOS None

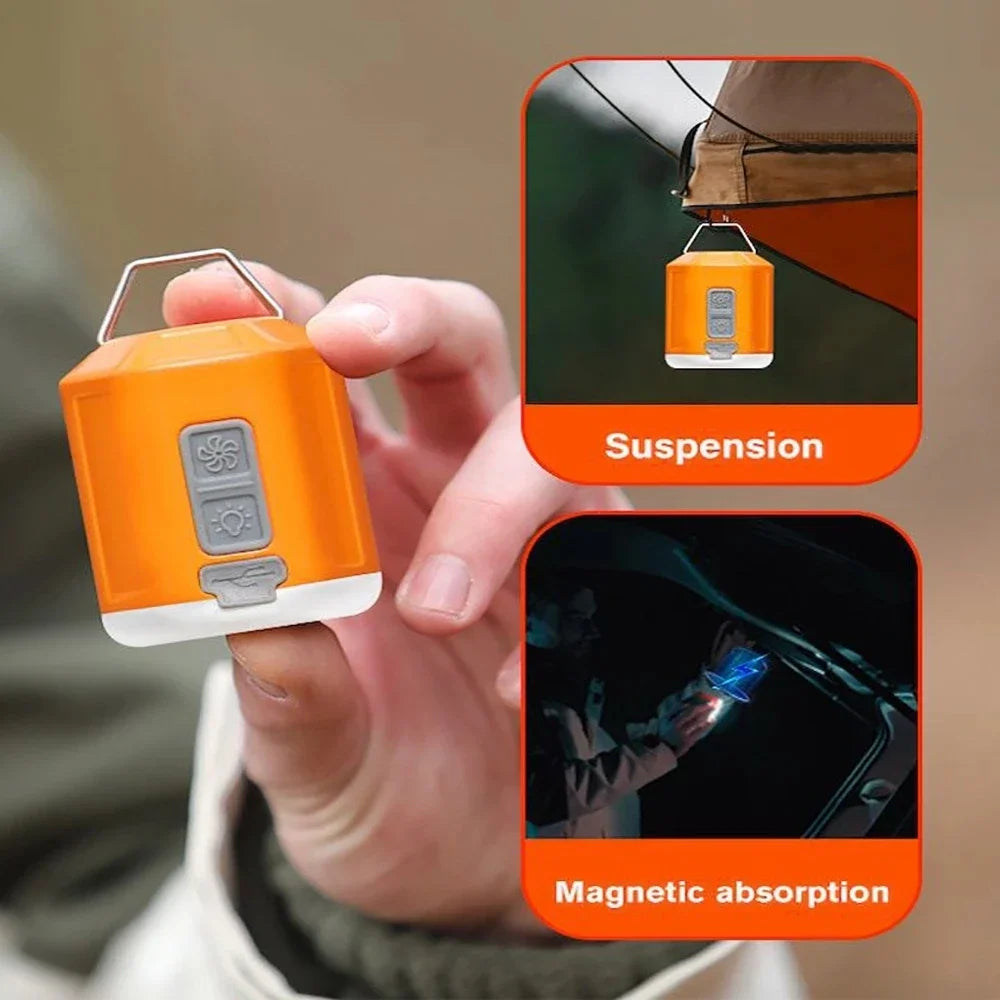

Lifting ring Yes

Maximum power (W) 23.5W

Charging port Tapy-C

Maximum fan speed (r/min) 5000 ± 5%

App intelligent control None

Impeller size (mm) Diameter Φ 37x5mm

Number of blades 9

Fan motor DC brush motor

Ultrasonic adhesion between main body and shell

Foam adhesive for fixing the main body and battery

Ultrasonic adhesion between main body and lampshade

Battery waterproof and splashproof

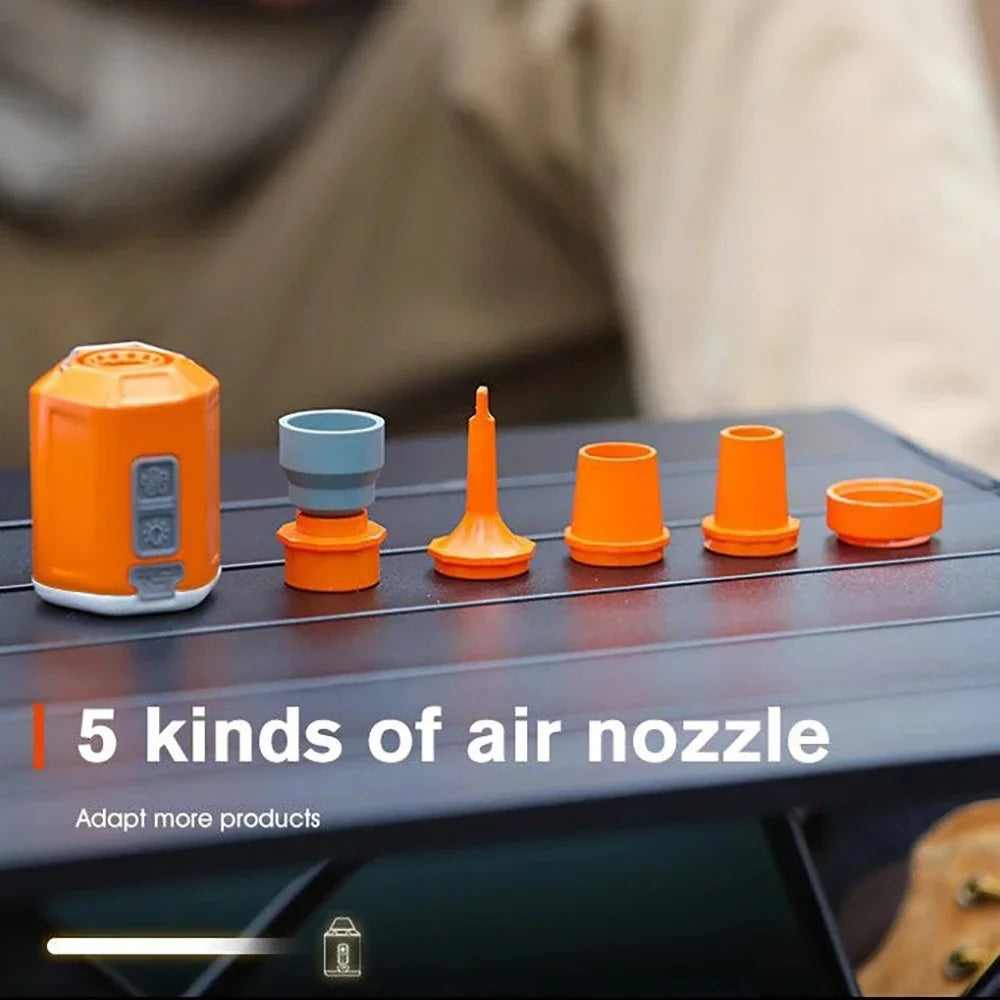

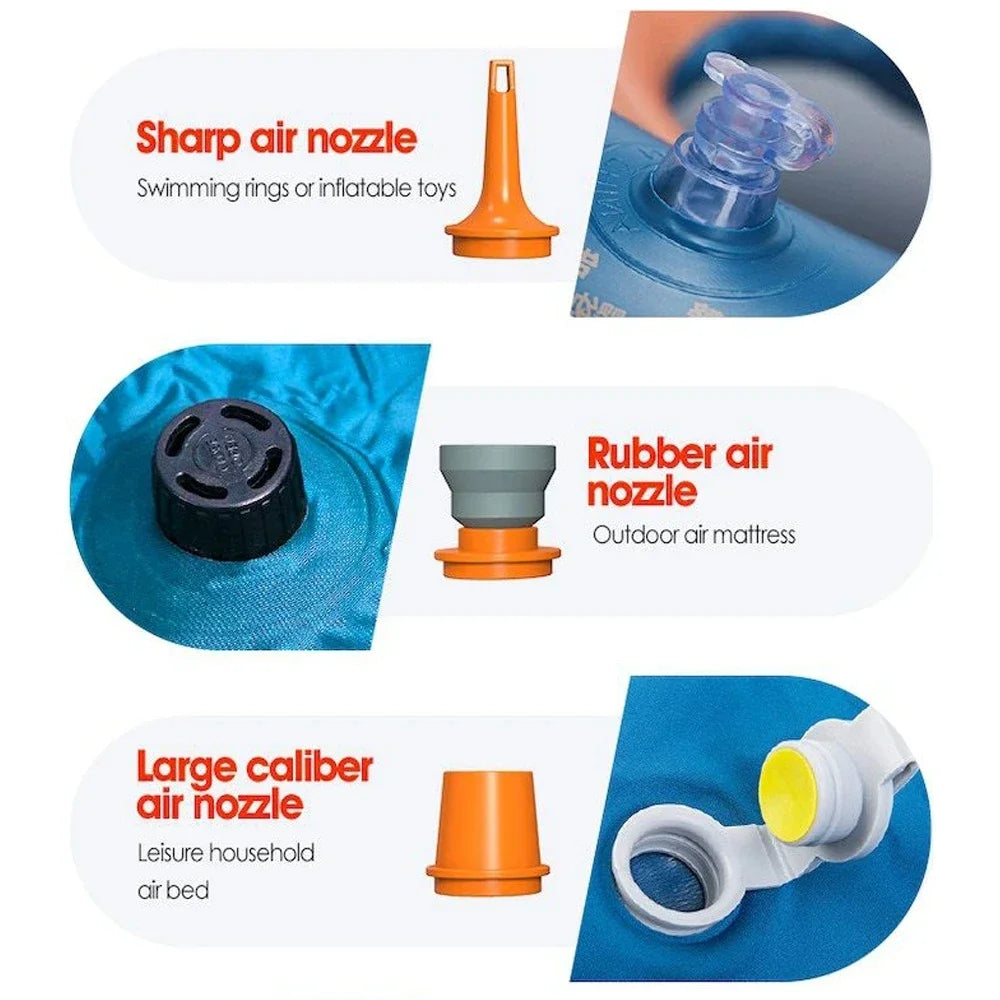

Number of air nozzles: 5

1 cloth bag

Tapy-C length (mm) 250mm
